P5 OUTDOOR LED DISPLAY

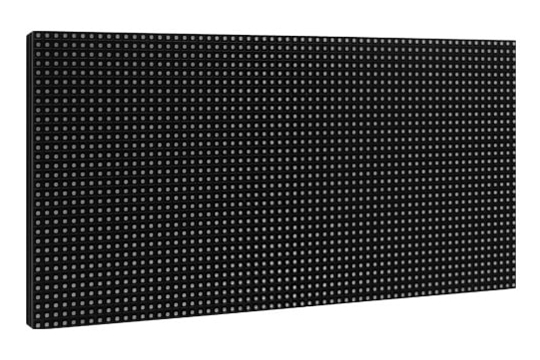

Module Picture
| Driving Type | IC2037 |
| Pixel Pitch | 5mm |
| LED Type | RGB 3in1 |
| LED Brand | |
| Package Mode | SMD1921 |
| Module Resolution | 64dots*32dots |
| Module Size | 320mm*160mm |

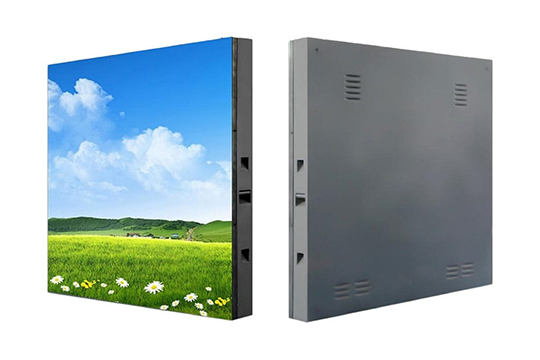

Cabinet Picture
| Max.Power Consumption | 550W/㎡ |
| Cabinet Size | 0.96m*0.96m |
| Cabinet Quantity | 1pcs |
| Pixel Density | 40000dots/㎡ |
| Cabinet Material | die casting aluminum Cabinet |
| Cabinet Weight | 27kg/pcs |
| Maintenance Way | Rear Sence |
| Average Power Consumption | 330W/㎡ |

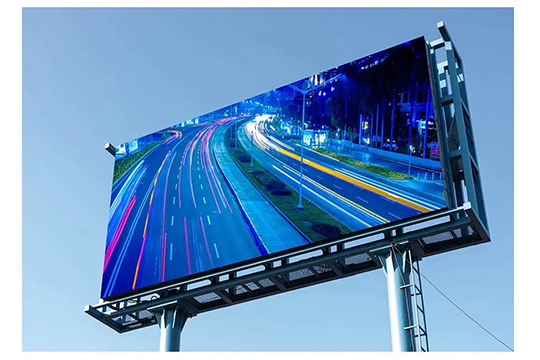

Led Screen Picture for Reference
| Controlling Systerm | Nova Star |
| Screen Siz | 0.92sqm |
| Screnn Quantity | 1pcs |
| Brightness | 6500-7500cd/㎡ |
| Best viewing Distance | 160°(W) 120°(H) |
| Best Viewing Distance | 5m-100m |
| Fresh Requency | 7680HZ |
| Frame Frequency | ≧60HZ |
| MTBF | ≧10,000H |
| Working Voltage | AC220V/110V,50HZ/60HZ (±10%) |
| Waterproof Grade | IP65 |
| Temperature | Storage ℃～+85℃ | working: -20℃～+50℃ |

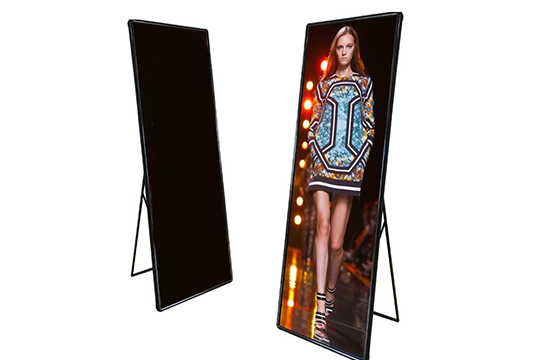

INDOOR P 2.5 SMD 3 IN 1
Technical Parameters
| Tamanho do gabinete | 695*1975mm |
| Número do modelo | P2.5-32S |
| Tamanho do módulo | 320mm* 160mm |
| Distância de pixels | 2.5mm |
| Densidade de pixels | 160000dots/m² |
| Configuração de pixels | 1R1G1B |
| Modo pacote | SMD1515 |
| Resolução de pixels | 128dots (W)*64dots(H) |
| Tipo de unidade | Constant drive (2037/2153) |
| Modo de digitalização | 1/32 scan |
| Tipo de porta | HUB75 |
| Brilho do equilíbrio de branco | ≥ 1200cd/m² |

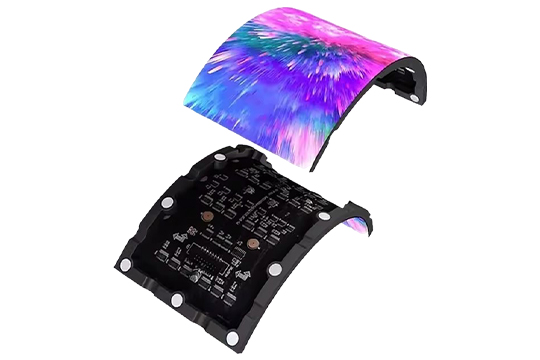

INDOOR P 2.5 FLEXÍVEL
Technical Parameters
| Tamanho de exibição | 640*1920mm |
| Número do modelo | P2.5 |
| Consumo do módulo | 20W |
| Resolução de exibição | 128X64=8192 |
| Densidade de pixels | 160000dots/m² |
| Configuração de pixels | 1R1G1B |
| Modo pacote | SMD1515 |
| Resolução de pixels | 128dots (W)*64dots(H) |
| Tipo de unidade | Constant drive (2037/2153) |
| Modo de digitalização | 1/32 scan |
| Tipo de porta | HUB75 |
| Brilho do equilíbrio de branco | ≥ 1200cd/m² |
| Tamanho do gabinete | 695*1975mm |

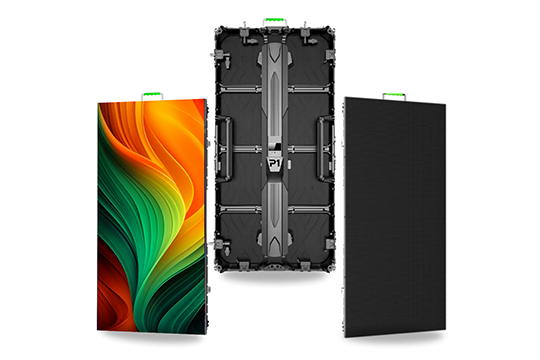

P 3.91 OUTDOOR LED DISPLAY RENTAL DIE - CASTING ALUMINUM CABINET
Module Picture
| Module Size | 250mm*250mm |
| Pixel Pitch | 3.91mm |
| LED Type | RGB 3in1 |
| LED Brand | KingLight |
| Package Mode | SMD1921 |
| Module Resolution | 64dots*64dots |
Cabinet Picture
| Max Power Consumption | 550W/㎡ |
| Cabinet Size | 500mm*1000mm |
| Cabinet Quantity | 200pcs |
| Pixel Density | 65536dots/㎡ |
| Cabinet Material | Die-casting aluminum Cabinet |
| Cabinet Weight | 12kg/pcs |
| Maintenance Way | Rear Sence |
| Average Power Consumption | 300-500W/㎡ |

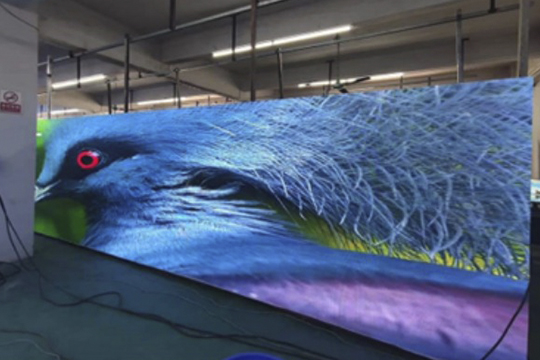

Led Screen Picture for Reference
| Controlling Systerm | Nova Star |
| Screen Siz | 100㎡ |
| Screnn Quantity | 1pcs |
| Brightness | 6000cd/㎡ |
| Best viewing Distance | 160°(W) 120°(H) |
| Best Viewing Distance | 3m-100m |
| Fresh Requency | 7680HZ |
| Frame Frequency | ≧60HZ |
| MTBF | ≧100,000H |
| Working Voltage | AC220V/110V,50HZ/60HZ (±10%) |
| Waterproof Grade | IP65 |
| Temperature | Storage ℃～+85℃ | working: -20℃～+50℃ |
